3) Quarter tube section under pressure and heat conduction

This is a quarter tube section either under pressure or different temperature on inner and outer boundaries. (Any circular arc section could have been taken for symmetry reasons, of course). A schematic drawing is given in Fig.1 together with the computational grid in Fig.2.

Schematic drawing of loads and boundary conditions, 4k to load enlargement Grid, 19k to load enlargement

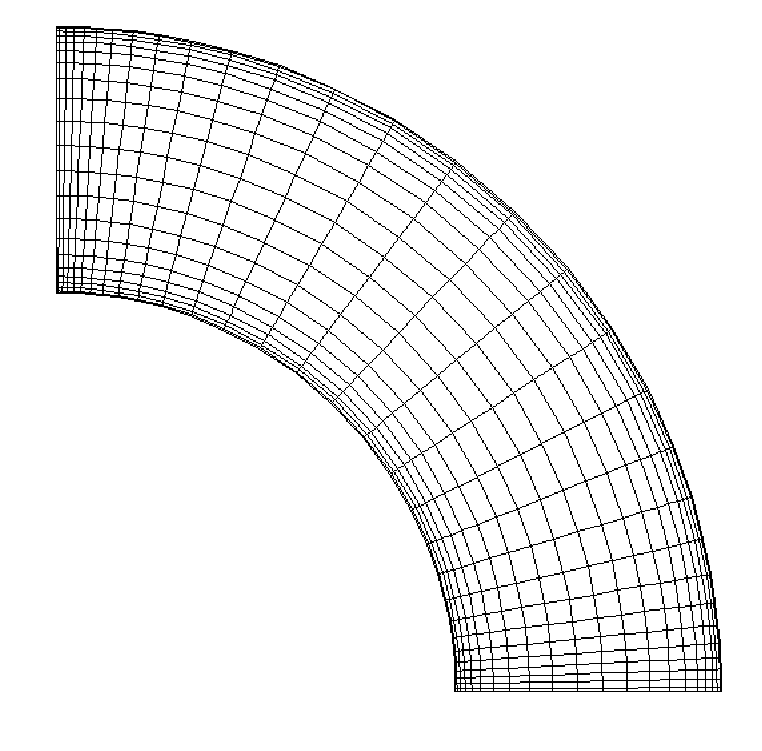

Figure 1: Schematic drawing of loads and boundary conditions Figure 2: Computational Grid

It can be seen in Fig.3 that the symmetric boundary conditions are fulfilled.

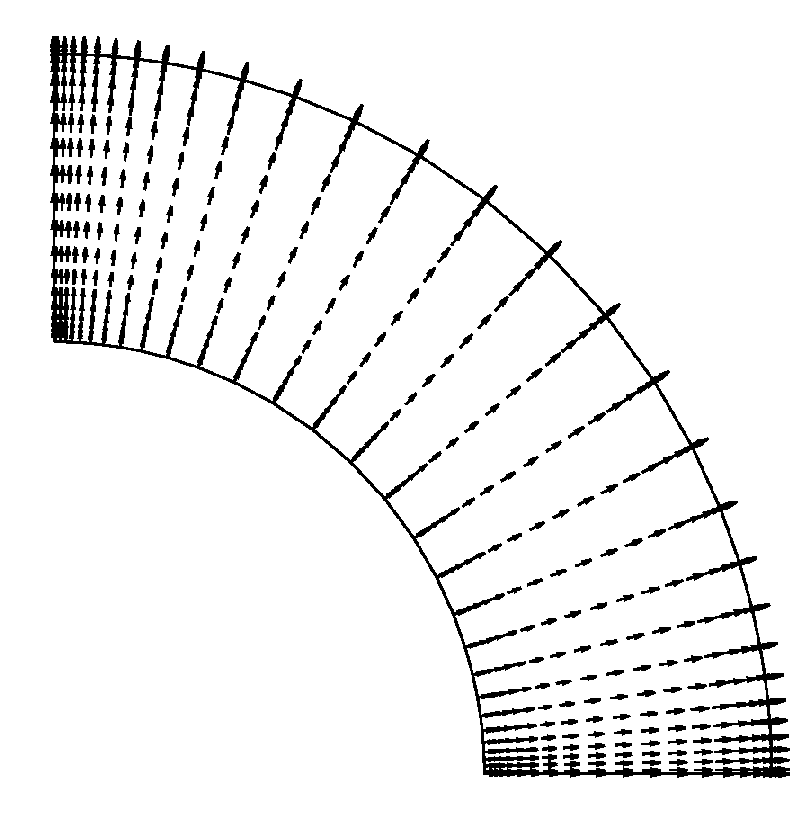

Displacements, 13k to load enlargement Figure 3: Displacements for either given inner pressure or higher inner temperature
