Appearance examples

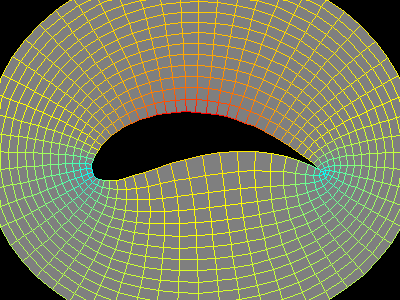

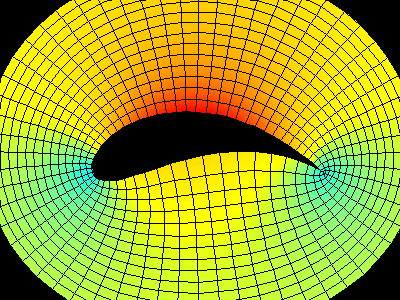

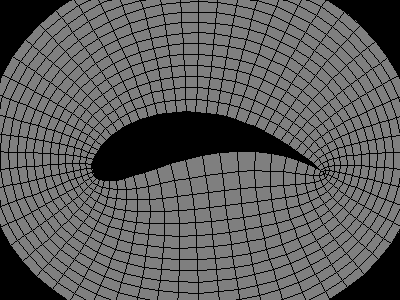

set app fe	set app fs

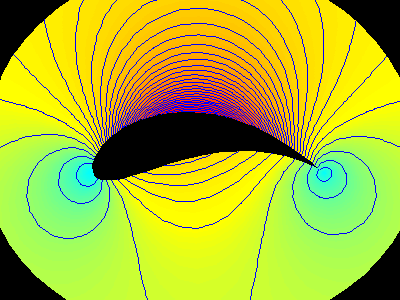

set app fsc	set app fse

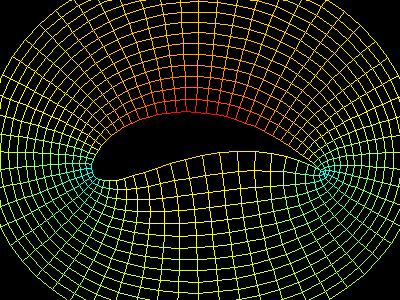

set app fes	set app es

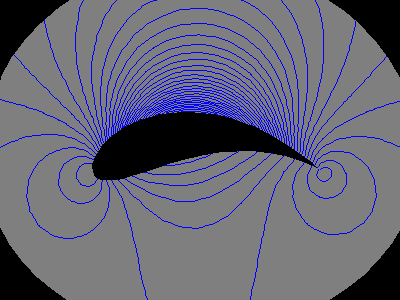

set app fc	set app fcs

Commands:

set box 1,1,0.0001
set zoom 2.6

set view 0,90

set edge_col 0,0,0
set line_col 0,0,255
set face_col 127,127,127
set using 3
set lut color6.lut

set xrange -4.2,3.8
set yrange -3.6,4.4


set cont 0,0.2,8

set appear fse        # Modified
draw mesh cyl.dat

"color6.lut" file:

0.0    0.0,1.0,1.0  1.0   1.0,1.0,0.0  45
1.0    1.0,1.0,0.0  7.0   1.0,0.0,0.0  60

Appearance

Letter          Function                         Attributes

f               draw faces                       face_color
e               draw edges                       edge_color, edge_width
c               draw contour lines               line_color, line_width
r               render faces with light effect   light, render_ambient
s               shade (using loop-up table)      lut (look-up table)

Shell script: pix.run

Data set: cyl.dat

LUT file: color6.lut

Shell script to generate Data set: scilab.run
