Computational  Modelling  of  Pitching  Airfoil  Flows


Researcher:    M. Schatz,  U. Bunge,  T. Rung




CASE B, light-stall case, mean angle of attack 11o



 Reynolds number  1.95*106
 Mach number  0.29
 mean angle of attack  11o
 pitching angle                        4.2osin(wt)
 reduced frequency   (k=0.5wLref/Uref)  0.1

The below given results display the amount of predictive accuracy obtained from different linear Boussinesq-viscosity models (SA & SALSA: one-equation models;   Wilcox & LLR: two-equation k-w models) for these type of flows.

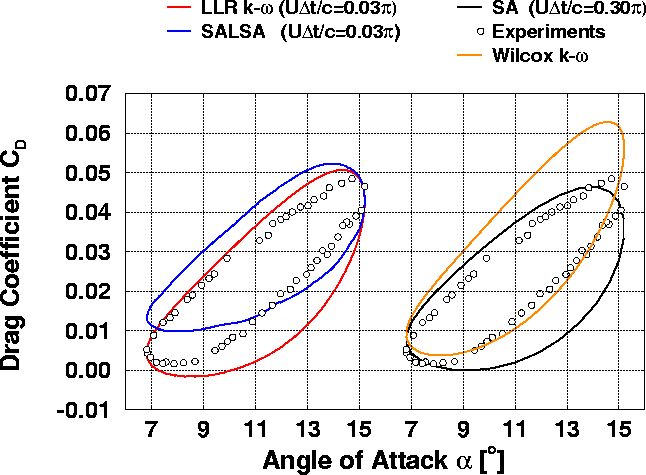

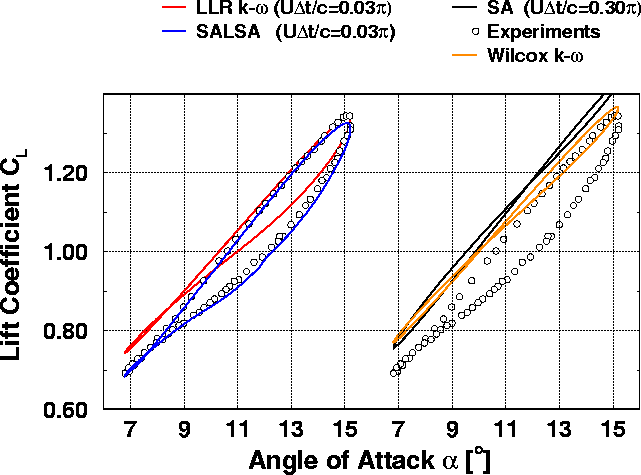

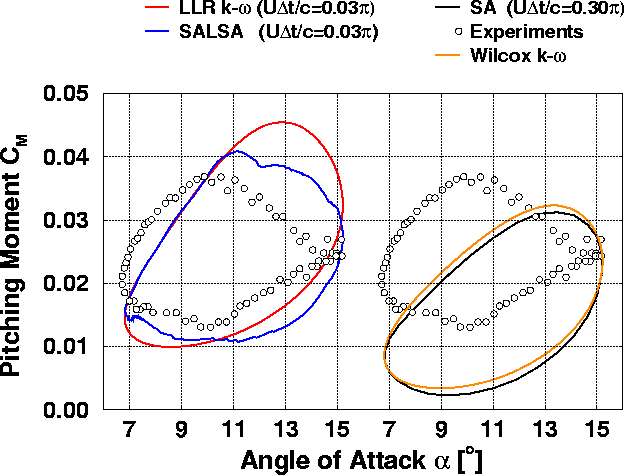

unsteady lift coefficient, 13k to load enlargement unsteady pitching moment coefficient, 13k to load enlargement unsteady drag coefficient, 13k to load enlargement
